Features
Integrated desktop MCA based on Digital Signal Processing (DSP)
Excellent count rate and temperature stability
Wide range of processing time parameters to allow precise match to detector characteristics and application requirements
16K Channel conversion gain /spectrum memory
USB 2.0 interface allows simple connection to computer
Convenient small form-factor desktop package
Full set of front panel indicators
Performs pulse height analysis (PHA) or multi-channel scaling (MCS)
Advanced patented* auto pole /zero, base line restoration and digital stabilization capability
Web-based maintenance utility
Built-in power up diagnostics
Supported by Genie™ software
Description

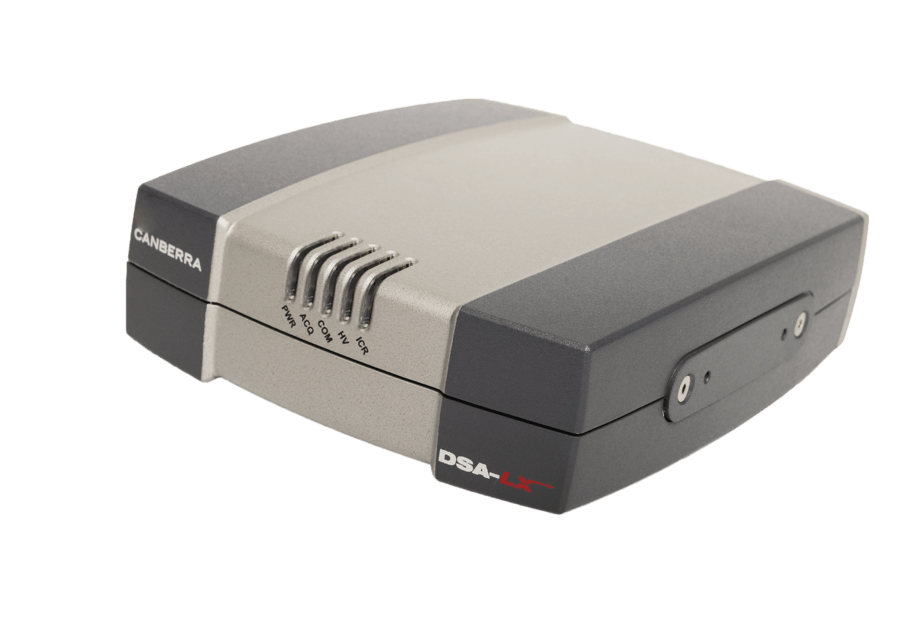

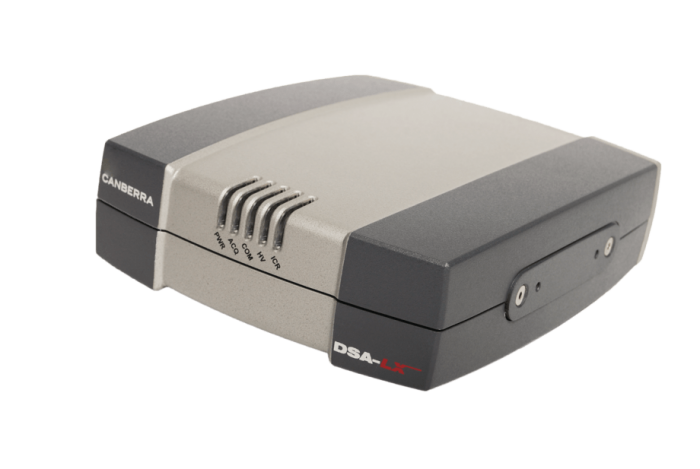

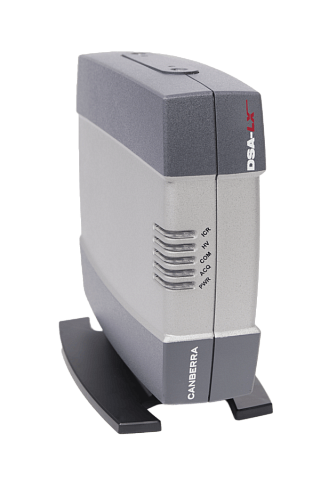

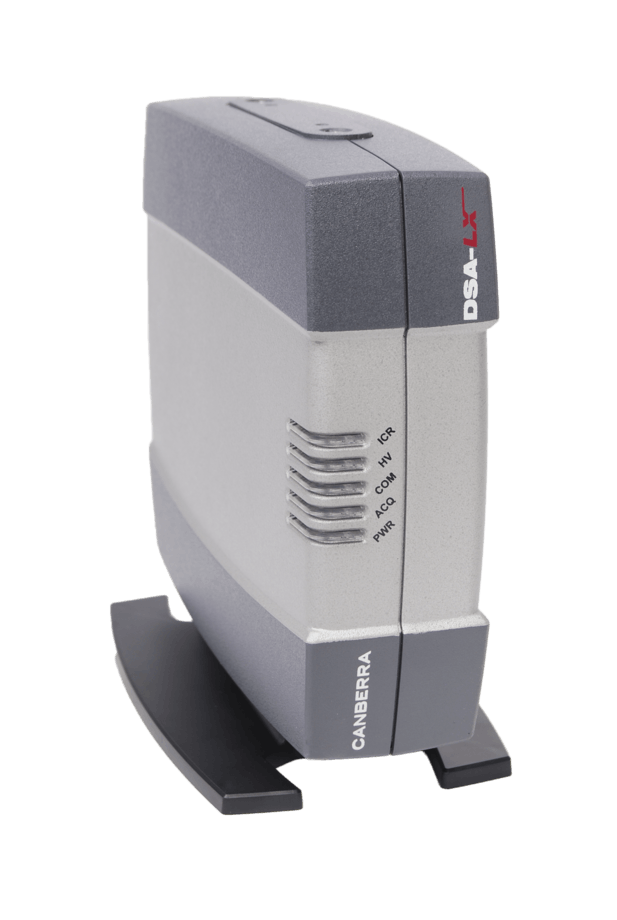

The DSA-LX analyzer is a full featured 16K channel integrated Multichannel Analyzer based on advanced digital signal processing techniques (DSP). When paired with a computer running Genie software the DSA-LX unit becomes a complete spectroscopy workstation, capable of the highest quality acquisition and analysis. The instrument interfaces to existing detector technologies such as HPGe, NaI, Si(Li), CdTe or Cd(Zn)Te.
The DSA-LX analyzer offers cost effective, no-compromise DSP-quality spectroscopy in a very compact package. It is operated through the Mirion Genie spectroscopy software which provides the user with ultimate flexibility. A wide range of application specific software options are available under the Genie family.

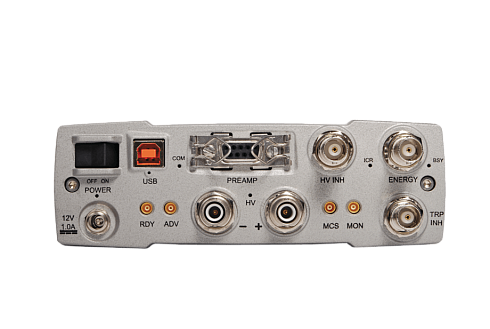

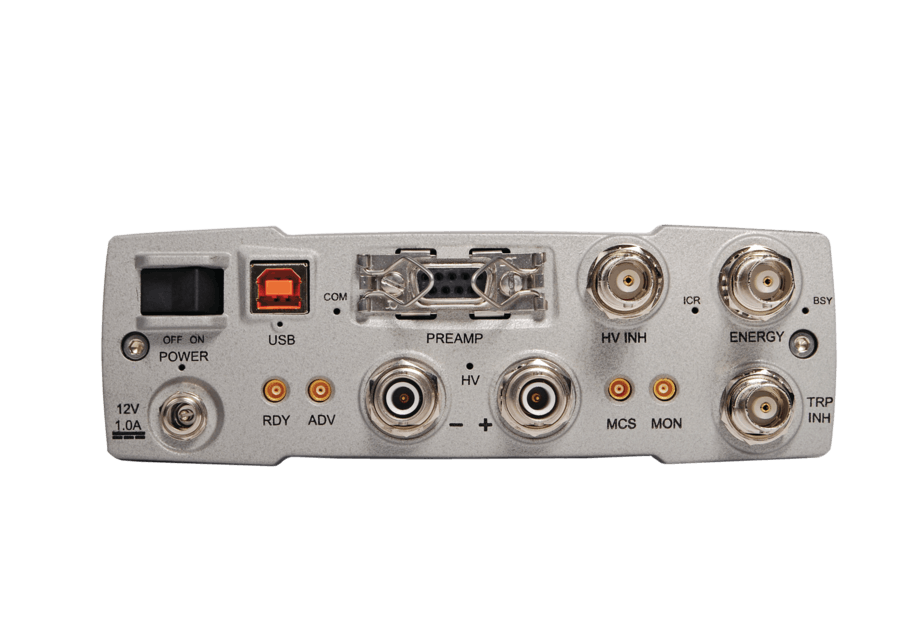

This highly integrated instrument incorporates front end signal conditioning, a fast digitizing analog-to-digital converter (ADC), programmable digital filters, automatic pole /zero* and base line restorer, digital fast discriminator, two groups of 16K channel spectral memory, digital stabilizer and a dual-range HVPS – all in a small, compact package. Lighted indicators are included on the front and rear panels to alert the user to power, acquisition, communication, high voltage and count rate status at a glance.
